Product Details:
|
| Material: | Tungsten Carbide | Coated: | Nano |
|---|---|---|---|
| Standard: | Standard | Hardness Degree: | HRC60 |
| Series: | W | Flute: | 2 Flutes |
| Flute Dia.: | 0.2mm | Flute Length: | 0.8mm |
| Shank Dia.: | 4mm | Helix Angle: | 35° |
| Overlength: | 50mm | Shank Shape: | Straight Shank |

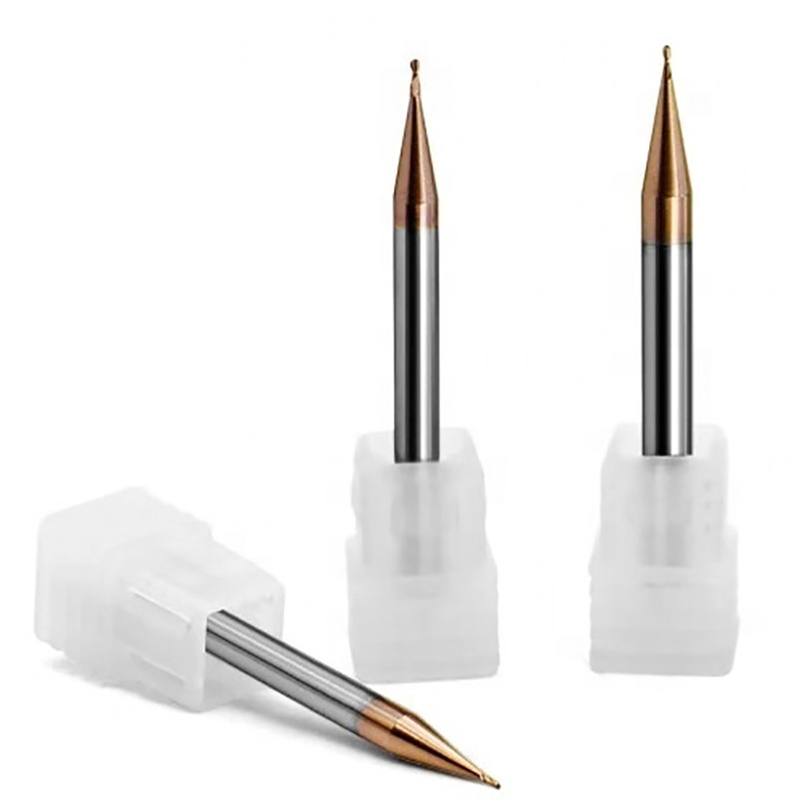

| High Light: | Hrc60 Micro End Mills,0.1mm Ball Nose End Mills,Micro End Mills Two Flutes |
||
The end Mills can be general purpose or high perfomance. They can be used used for plunging, grooving, side milling, face milling, and counter boring. These are the most popular milling cutters in the industry. They are available in a wide variety of diameter sizes.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Material: | Tungsten Carbide |
| Standard: | Standard |
| Series: | W |
| Flute Dia.: | 0.2mm |
| Shank Dia.: | 4mm |
| Overlength: | 50mm |
| Coated: | Nano |
| Hardness Degree: | HRC60 |
| Flute: | 2 Flutes |
| Flute Length: | 0.8mm |
| Helix Angle: | 35° |
| Shank Shape: | Straight Shank |
Tips: The specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
