Product Details:
|
| Material: | Tungsten Carbide | Coated: | Nano |
|---|---|---|---|
| Standard: | Standard | Series: | W |
| Flute: | 2flutes | Flute Dia.: | 4mm |
| Flute Length: | 10mm | Shank Dia.: | 4mm |
| Helix Angle: | 35° | Overlength: | 50mm |
| Shank Shape: | Straight Shank | ||
| High Light: | Nano Coated tungsten carbide endmills,2 Flute tungsten end mill,10mm tungsten carbide endmills |
||

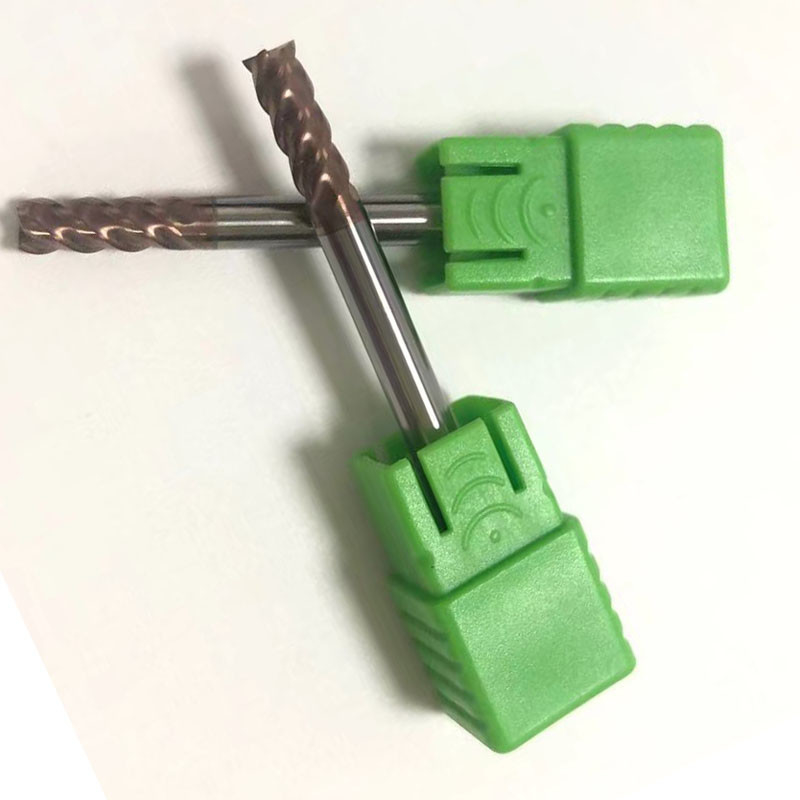

High Quality Solid Tungsten Carbide 2 Flute D4 End Mills H60RC
It has the characteristics of high precision. The special chip groove can Improved chip evacuation & increased edge/corner strength to reduce any risk of breakage. and the can insure capable of machining a wide range of materials & operations. It has the characteristics of high precision, high finishing surface of works and long lifespan when processing.
| Material: | Tungsten Carbide |
| Standard: | Standard |
| Flute: | 2flutes |
| Flute Length: | 10mm |
| Helix Angle: | 35° |
| Shank Shape: | Straight Shank |
| Coated: | Nano |
| Series: | W |
| Flute Dia.: | 4mm |
| Shank Dia.: | 4mm |
| Overlength: | 50mm |
THE END MILLS ON INSPECTING
THE END MILLS ON PROCESSING
Tips: we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 2F, 4F. The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
